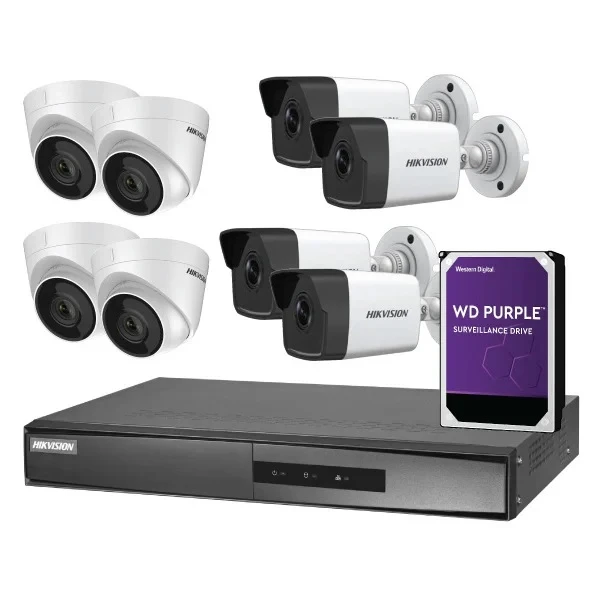

Professional 8 Channel NVR Setup – Your #1 Choice in Delhi NCR

Impact by Honeywell 5MP White Plastic AHD IR Dome Camera, I-HADC-5005PI-L

Wbox 5MP 3.6mm Plastic Fixed Lens AHD IR Dome Camera, WBC0ECVHD5R2FPN

Hikvision 2MP PIR Analog Dome Camera, DS-2CE5AD0T-PIR

D-Link 2MP 3.6mm Plastic Full HD 1080p Day & Night Fixed Dome Camera, IR: 20 m, DCS-F1612

Securus 3MP 2304x1296p Aluminium & ABS Dome Camera, SS-NC15DXLP-CSUTL-M3(S)

Godrej SeeThru 2MP HD Infrared CCTV Camera, GODREJ2MP1DOME

Follow these steps to resolve the issue:

• 1Check power supply to camera (LED indicator should be steady).
• 2Verify BNC/RJ45 cable connections at camera and NVR, ensuring no loose connectors.
• 3Test the camera independently on a known‑working channel or another NVR to isolate the unit.
• 4Confirm the NVR channel is configured for the correct video format (AHD/TVI/CVI) that matches the camera.
• 5If signal test shows low voltage, replace the cable or use an AV‑to‑IP converter if the camera is analog.

Follow these steps to resolve the issue:

• 1Open the NVR storage management menu and check HDD health status; an error flag indicates a bad drive.
• 2Verify the recording schedule – ensure it is set to 24/7 or to the desired motion‑based event window.
• 3Confirm the HDD has sufficient free space (>10% minimum); if full, delete old footage or add a larger drive.
• 4Check motion‑detection sensitivity settings on each channel; too low sensitivity may skip events.
• 5If the HDD shows corruption, back up any critical footage, then re‑initialize the drive (note: data loss).

Follow these steps to resolve the issue:

• 1Ensure the mobile app (Hik‑Connect, DMSS, or equivalent) is updated to the latest version on the device.
• 2Ping the NVR’s public IP from a mobile network to confirm internet connectivity; if ping fails, check local firewall rules.
• 3Verify the NVR’s P2P/cloud connection status in the network settings; enable the “P2P” switch if using a static IP or dynamic DNS.
• 4Remove the device from the app and re‑add it using the QR code or manual registration to refresh credentials.
• 5If a custom port forwarding is required for a static IP, contact the ISP to open port 8000 (or configured port) in the router.

Follow these steps to resolve the issue:

• 1Clean the camera lens dome with a soft microfiber cloth; residual dust can block IR illumination.
• 2Check that the IR cut filter switches automatically at dusk/dawn; if it stays in ‘day’ mode, reset the camera or replace the filter.
• 3Verify that the IR illuminator LEDs emit a steady glow; replace the camera if LEDs are dim or flicker.
• 4Adjust camera tilt and angle to minimize IR reflection off walls or metallic surfaces.
• 5If the camera model supports low‑light mode, enable it in the camera’s advanced settings.
